Visual SAT-Flare Tracker 3D

BACK










Multi TLE Support

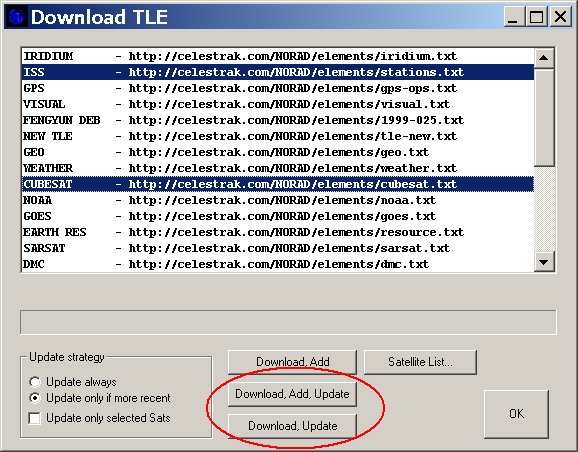

The program is capable to store more than one TLE for each satellite and to choose the best one to be used according to the working program time. This allows the user to accurately model or track flares over a large period of time without bothering to change manually the TLE. In addition, this function allows for satellite tracking also across orbit corrections, boosts, and so on. To take advantage of this new feature, simply use the "update, add" or "update" commands when acquiring TLEs, as shown by the following picture.




The number of acquired TLEs  is shown in the "orbit details":

Image >The number of available TLEs and the number of that in use are shown in the EPOCH row. In the example, two TLEs of the International space stations are available and the first one has been automatically selected.
